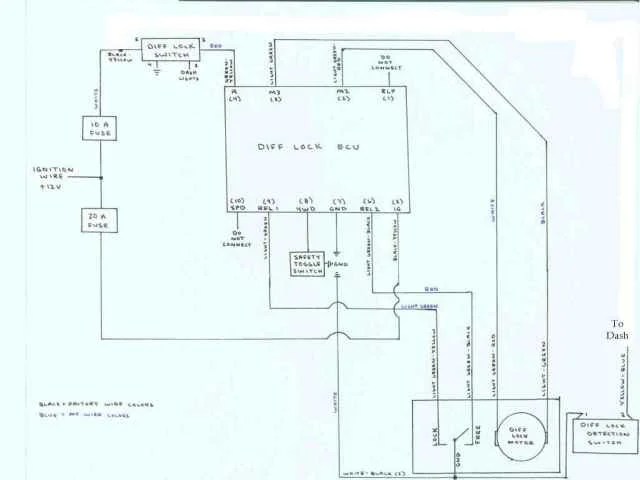

Toyota E Locker Wiring Diagram. This is the wiring diagram i used to wire up the elocker. Toyota e locker wiring diagram.
They're available as gif's (at the bottom of the page). You'll have to pull it out of the old one and swap it. When you make use of your finger or perhaps the actual circuit with your eyes, it is easy to mistrace the circuit.
The factory locker wiring is an integral part of this main harness, and it despite the minor setback, i ordered the locker harness (toyota.oe wiring harnesses: This one is our creation, with some ideas of our own joined by those borrowed. Press the switch into the opening on the dash so that it is secured.
1 trick that we 2 to printing a similar wiring plan off twice. A wiring diagram is a type of schematic which makes use of abstract pictorial signs to show all the interconnections of parts in a system. The correct switch function will go as follows.
Based on the details we took from adwords, e locker wiring harness toyota tacoma has a lot of search online web engine. A previous owner swapped in an e locker rear diff with the oem harness, the ecu, and the dash switch, but the wiring was never done. I find no mention of electric locker wiring in the 2003 fsm wiring manual.
I have a 2000 sr5 without factory e locker. And im sure you can find tons of. These are for low pinion elockers only no high pinion fj80 front axles commonly found in 96 00 4runner 97 and up tacoma 09 and up 4runner 07 14 fj cruiser.
Biopsy of a toyota e locker swap part 2 off road com wiring relay question limit switch where i answer my questions moments after asking them thread ih8mud forum ors harness products solutions full kit cable 12 volt guy elocker control module difflock view topic installation and instructions with aftermarket. Bottom light will light up with key in ignition. Someone must have got it done after.
